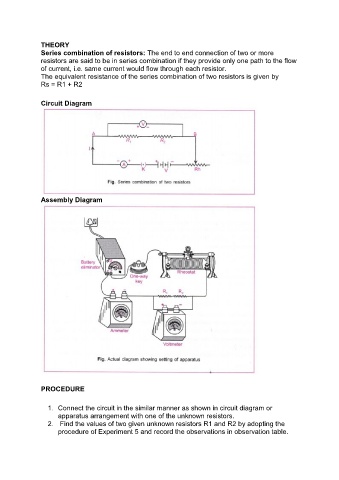

THEORY
Series combination of resistors: The end to end connection of two or more
resistors are said to be in series combination if they provide only one path to the flow
of current, i.e. same current would flow through each resistor.
The equivalent resistance of the series combination of two resistors is given by
Rs = R1 + R2
Circuit Diagram
Assembly Diagram
PROCEDURE
1. Connect the circuit in the similar manner as shown in circuit diagram or
apparatus arrangement with one of the unknown resistors.
2. Find the values of two given unknown resistors R1 and R2 by adopting the
procedure of Experiment 5 and record the observations in observation table.
