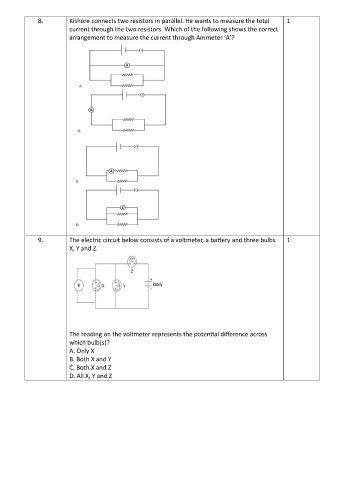

8. Kishore connects two resistors in parallel. He wants to measure the total 1
current through the two resistors. Which of the following shows the correct
arrangement to measure the current through Ammeter ‘A’?

9. The electric circuit below consists of a voltmeter, a battery and three bulbs 1
X, Y and Z.

The reading on the voltmeter represents the potential difference across
which bulb(s)?
A. Only X
B. Both X and Y
C. Both X and Z
D. All X, Y and Z
