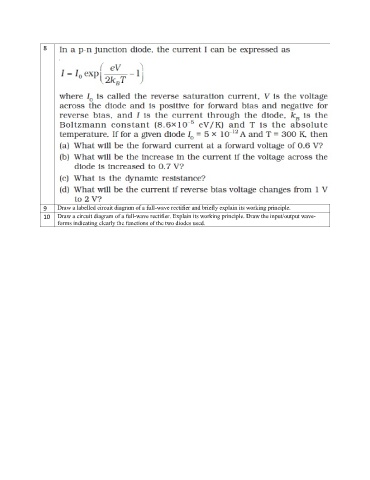

               9    Draw a labelled circuit diagram of a full-wave rectifier and briefly explain its working principle.
               10  Draw a circuit diagram of a full-wave rectifier. Explain its working principle. Draw the input/output wave-
                    forms indicating clearly the functions of the two diodes used.
